Pure rhombus boards
Invisible mounting – minimalistic and timeless
ADVANTAGES
- Solid timber
- Two 17° angled longitudinal edges allow rainwater to drain optimally.
- All longitudinal edges are rounded.
- Pre-milled spacing grooves on the back for cladding brackets (8 and 15 mm)
- Groove on the bottom to attach the cladding bracket
- Both screw and cladding bracket fixation possible.
In the colour of your choice: factory-finished cladding profiles ready for installation - from 1 square metre!
![Osmo Holz und Color -Fassaden - PURE System](/fileadmin/_processed_/d/1/csm_slider-osmo-holz-fassade-pure-ambiente-1_e36d3cbafe.jpg)
![Osmo Holz und Color -Fassaden - PURE System](/fileadmin/_processed_/4/c/csm_slider-osmo-holz-fassade-pure-ambiente-2_e4785a1e52.jpg)

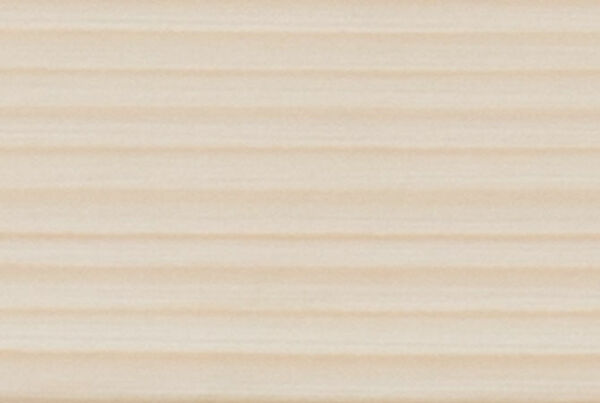

OUR WOOD SPECIES FOR PURE CLADDING PROFILES
Technical Information & installation

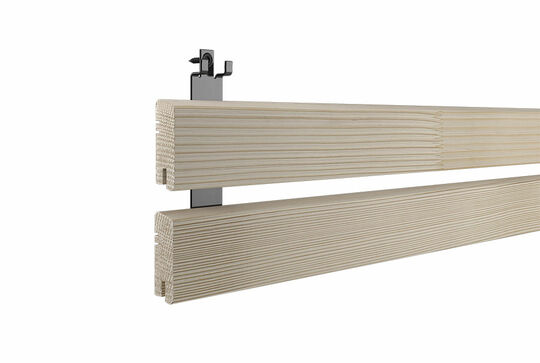

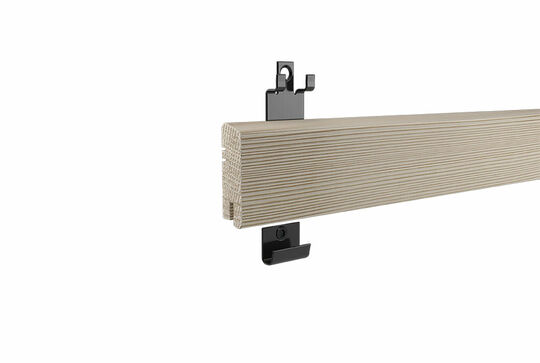

The hidden mounting of the PURE cladding system is ideal for a timeless and elegant facade design. The stable cladding bracket is clicked into place and fixed with a screw on the back of the Rhombus board. Then the cladding is mounted. With the milled grooves on the back of the profiles, you can choose either 8 or 15 mm gaps between the boards.
Installation instructions (German) PDF, 207 KB Productinformation sheet european douglas fir (German) PDF, 74 KB Productinformation sheet canadian douglas fir (German) PDF, 133 KB Productinformation sheet canadian larch (German) PDF, 186 KB Productinformation sheet nordic spruce (German) PDF, 75 KB![Osmo Holz und Color -Fassaden - PURE Montage](/fileadmin/_processed_/2/f/csm_osmo-fassade-pure-montage-2_658c6e8491.jpg)
![Osmo Holz und Color -Fassaden - PURE Montage](/fileadmin/_processed_/4/4/csm_osmo-fassade-pure-montage-1_0426cc9772.jpg)
![Osmo Cladding Wood Finishes](/fileadmin/_processed_/2/5/csm_teaser-osmo-produkte-farbe-aussen-fassade_a9b09e6200.jpg)
Besides the wood for the cladding, we also offer a wide range of wood finishes especially developed for cladding.
![Osmo Cladding Accessories](/fileadmin/_processed_/a/9/csm_teaser-osmo-holz-aussen-fassade-zubehoer_a264bdbac3.jpg)
Find suitable accessories for our cladding profiles here.
